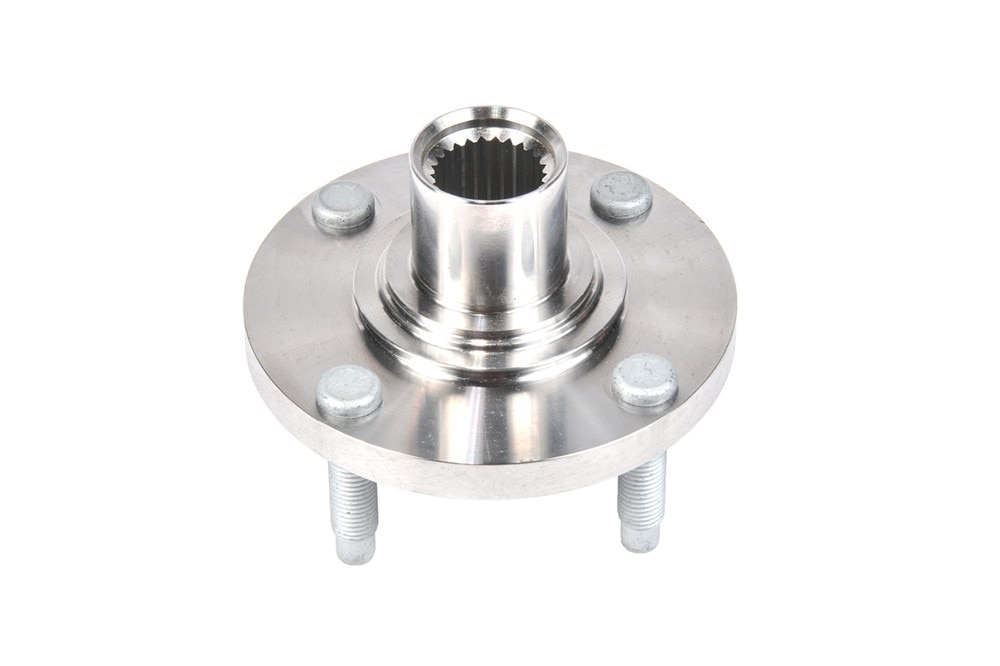

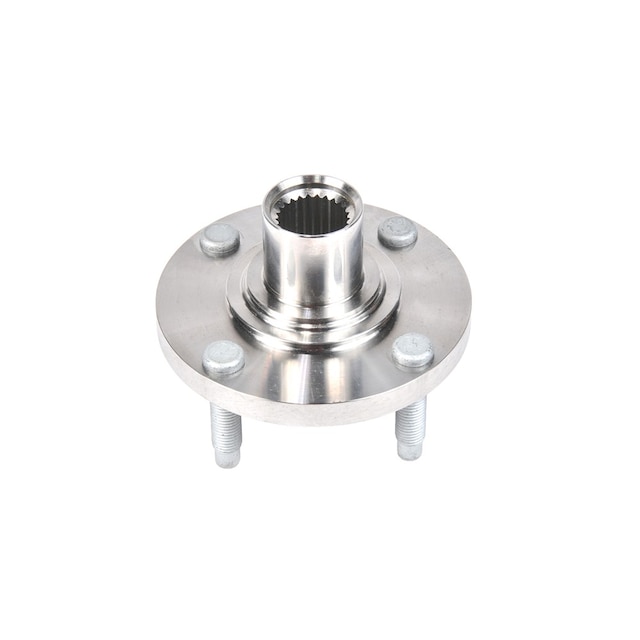

GM Genuine Parts Front Wheel Hub Assembly
OE
Pack of 1

GM Genuine Parts Front Wheel Hub Assembly

GM Part #13506399

ACDelco Part #FW437

MSRP$67.86*

ACDelco GM Original Equipment Wheel Hubs provide the attaching point for the brake rotor and road wheel, and are GM-recommended replacements for your vehicle's original components.

  • Provides the attaching point for the brake rotor and road wheel
  • Supported and allowed to rotate by the wheel bearing
  • GM OE bearing designs are dimensionally optimized to work with their mating parts

Pack of 1

About this product

ACDelco GM Original Equipment Wheel Hubs provide the attaching point for the brake rotor and road wheel, and are GM-recommended replacements for your vehicle's original components. These wheel hubs are supported and allowed to rotate by the wheel bearing. These original equipment wheel hubs have been manufactured to fit your GM vehicle, providing the same performance, durability, and service life you expect from General Motors.

Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

  • Provides the attaching point for the brake rotor and road wheel
  • Supported and allowed to rotate by the wheel bearing
  • GM OE bearing designs are dimensionally optimized to work with their mating parts
  • GM-recommended replacement part for your GM vehicle's original factory component
  • Offering the quality, reliability, and durability of GM OE
  • Manufactured to GM OE specification for fit, form, and function

ClassificationOE
Wheel Pilot Diameter56.48mm
Flange Bolt Hole Diameter12mm
Wheel Stud Size12mm
Wheel Studs IncludedYes
Anti Lock Braking System TypeSensor
Integrated Hub UnitNo
Hub Pilot Diameter38mm
Flange Diameter122mm
Brake Pilot Diameter59.96mm
Spline Quantity25
Flange Bolts IncludedYes
Anti Lock Braking SystemNo
Wheel Stud Quantity4
Flange Bolt Hole Quantity4
Flange ShapeRound

24 Months/Unlimited Miles Limited Warranty for Parts (plus Labor if installed by a GM dealer)

Please visit our warranty page on Gmparts.com for full warranty details.

Good Maintenance Practices:

  • Tighten the wheel hub axle nut to recommended specs, overtightening may cause premature wear to the hub assembly
  • Do not operate vehicle with a worn wheel hub assembly
  • For bearings that are bolted onto knuckles, apply GM-recommended grease between bearing knuckle pilot and knuckle bore for easy of future removal. Take special care to avoid getting grease in the threads.

Signs of wear for wheel hubs include but are not limited to:

  • Grinding when the vehicle is in motion
  • Knocking or clunking
  • Humming, rumbling, squealing, roaring or growling
  • Looseness
  • ABS, Traction control, Stability control light.
  • Wheel vibration and/or wobble

ModelBody StyleTrimYear(s)
SparkACTIV, LS, LT2016, 2017, 2018, 2019, 2020, 2021, 2022
