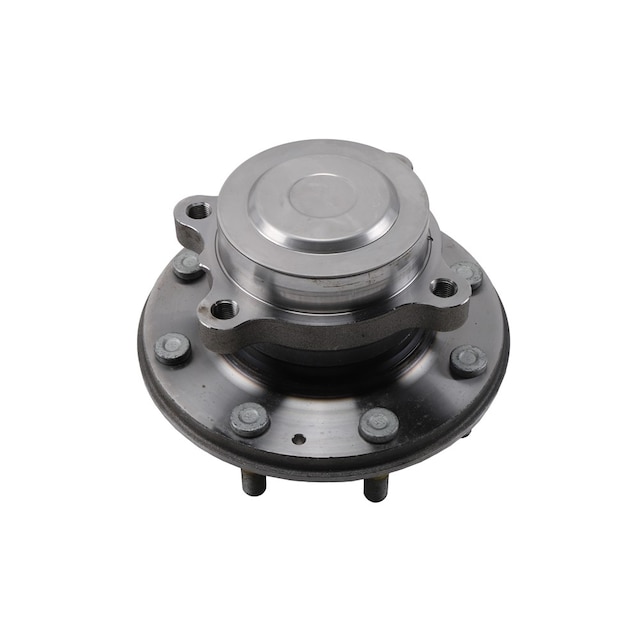

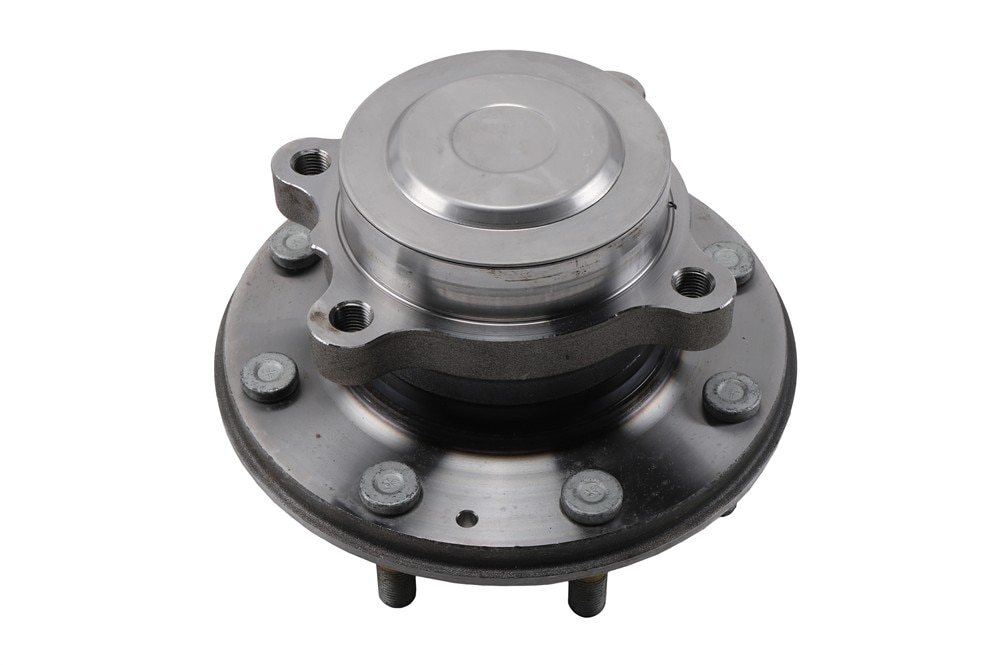

GM Genuine Parts Front Wheel Hub
OE
Pack of 1

GM Genuine Parts Front Wheel Hub

GM Part #13512700

ACDelco Part #FW480

MSRP$449.42*

ACDelco GM Original Equipment Wheel Hubs provide the attaching point for the brake rotor and road wheel, and are GM-recommended replacements for your vehicle's original components.

  • Provides the attaching point for the brake rotor and road wheel
  • Supported and allowed to rotate by the wheel bearing
  • GM OE bearing designs are dimensionally optimized to work with their mating parts

Pack of 1

About this product

ACDelco GM Original Equipment Wheel Hubs provide the attaching point for the brake rotor and road wheel, and are GM-recommended replacements for your vehicle's original components. These wheel hubs are supported and allowed to rotate by the wheel bearing. These original equipment wheel hubs have been manufactured to fit your GM vehicle, providing the same performance, durability, and service life you expect from General Motors.

Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

  • Provides the attaching point for the brake rotor and road wheel
  • Supported and allowed to rotate by the wheel bearing
  • GM OE bearing designs are dimensionally optimized to work with their mating parts
  • GM-recommended replacement part for your GM vehicle's original factory component
  • Offering the quality, reliability, and durability of GM OE
  • Manufactured to GM OE specification for fit, form, and function

Product Specifications

Flange IncludedYes
ClassificationOE
Wheel Stud Size14mm
Flange Diameter219mm
Flange Bolt Hole Diameter15.46mm
Flange ShapeRound
Wheel Pilot Diameter123.97mm
Brake Pilot Diameter126.93mm
Hub Pilot Diameter123.97mm
Flange Bolts IncludedYes
Anti Lock Braking SystemNo
Integrated Hub UnitYes
Wheel Stud Quantity8
Flange Bolt Hole Quantity8
Wheel Studs IncludedYes

24 Months/Unlimited Miles Limited Warranty for Parts (plus Labor if installed by a GM dealer)

Please visit our warranty page on Gmparts.com for full warranty details.

Good Maintenance Practices:

  • Tighten the wheel hub axle nut to recommended specs, overtightening may cause premature wear to the hub assembly
  • Do not operate vehicle with a worn wheel hub assembly
  • For bearings that are bolted onto knuckles, apply GM-recommended grease between bearing knuckle pilot and knuckle bore for easy of future removal. Take special care to avoid getting grease in the threads.

Signs of wear for wheel hubs include but are not limited to:

  • Grinding when the vehicle is in motion
  • Knocking or clunking
  • Humming, rumbling, squealing, roaring or growling
  • Looseness
  • ABS, Traction control, Stability control light.
  • Wheel vibration and/or wobble

ModelBody StyleTrimYear(s)
Silverado 3500 HD2020, 2021, 2022, 2023, 2024, 2025, 2026
