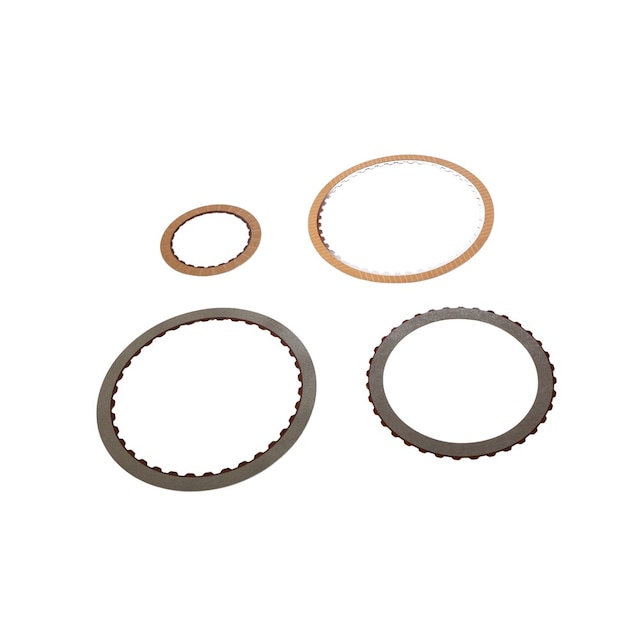

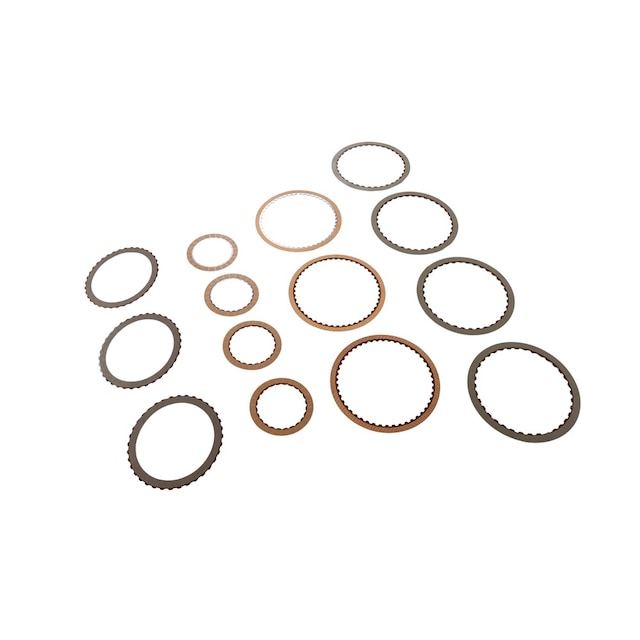

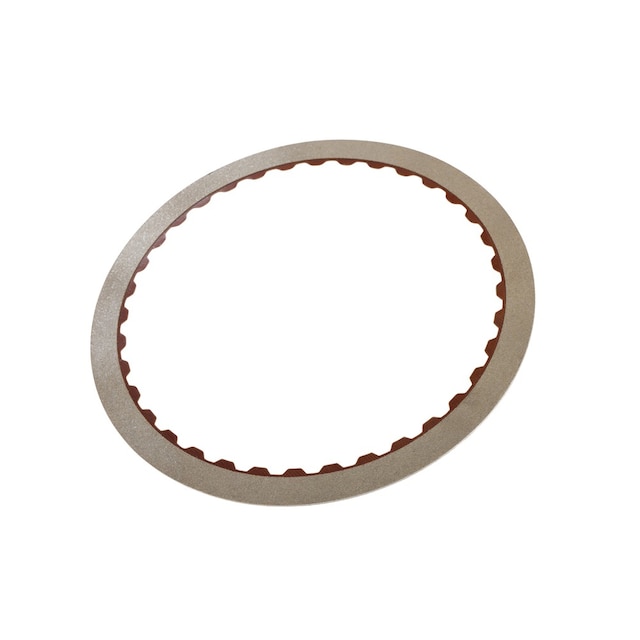

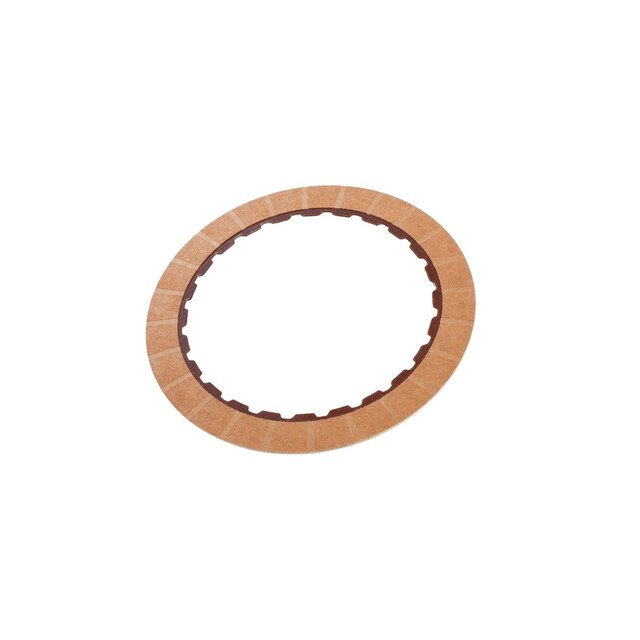

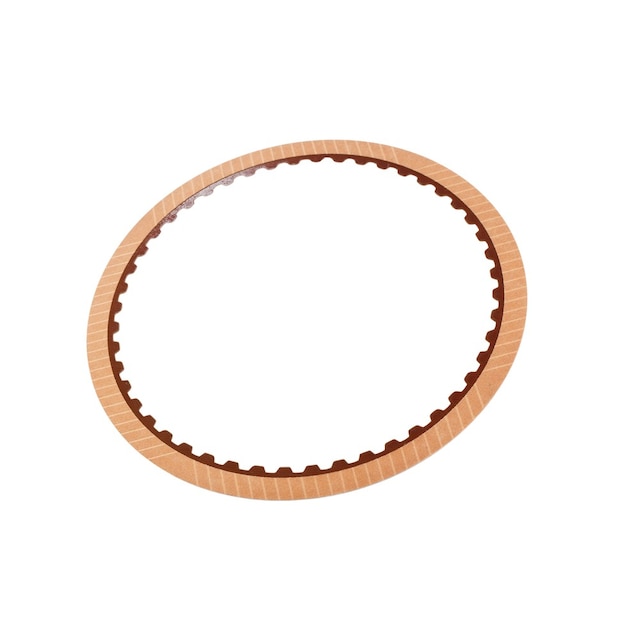

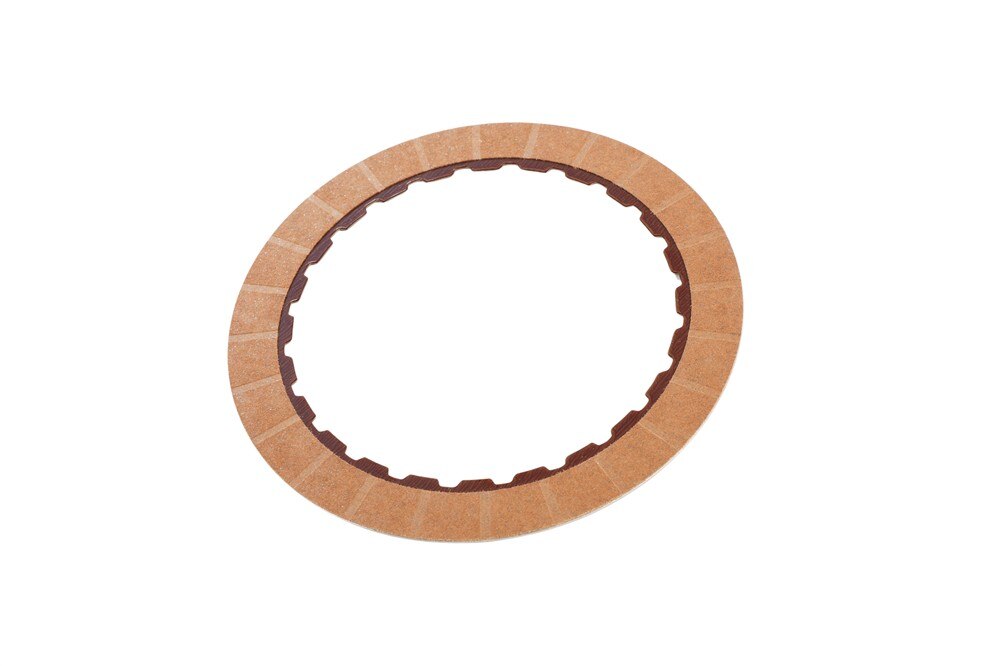

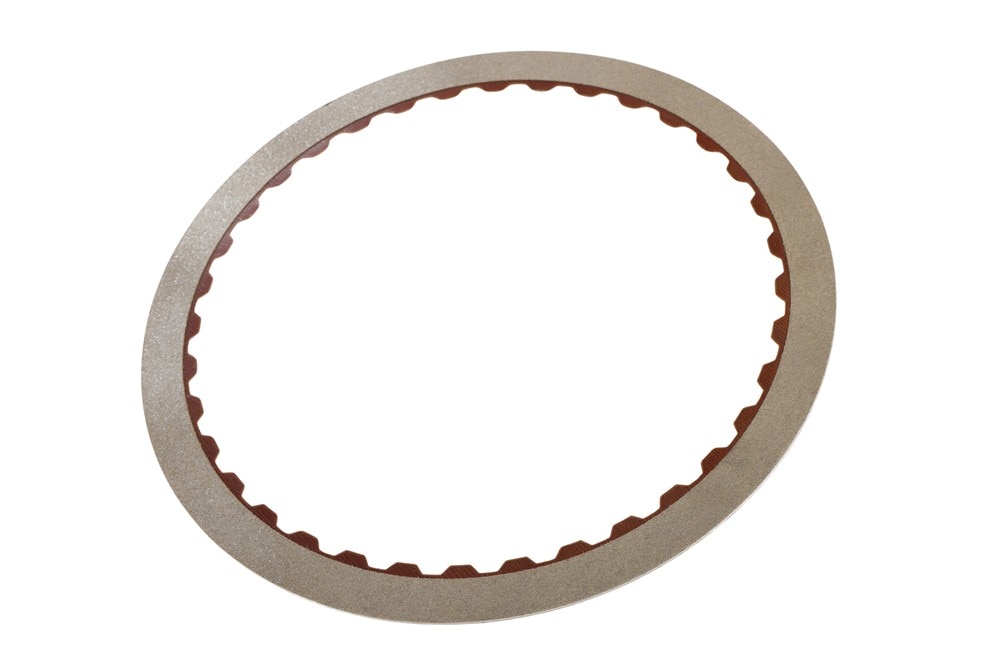

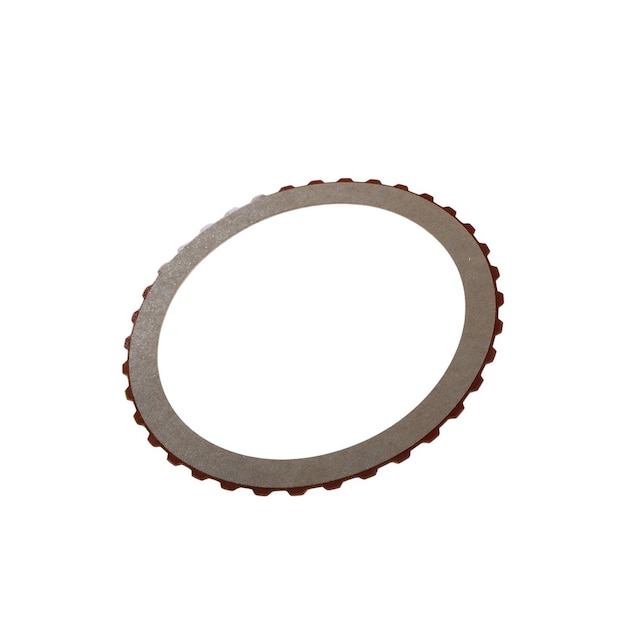

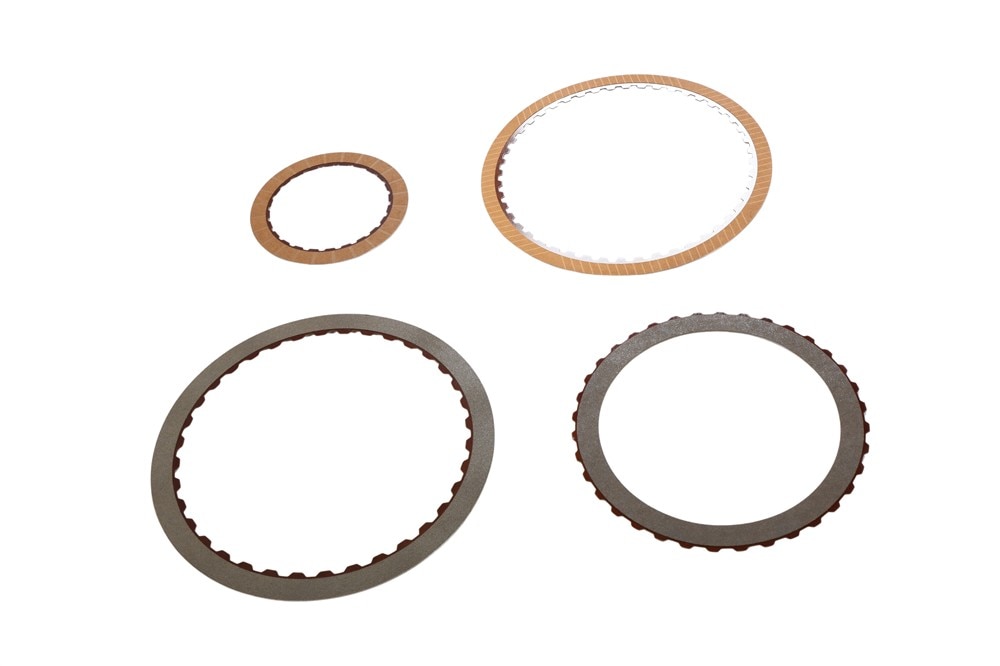

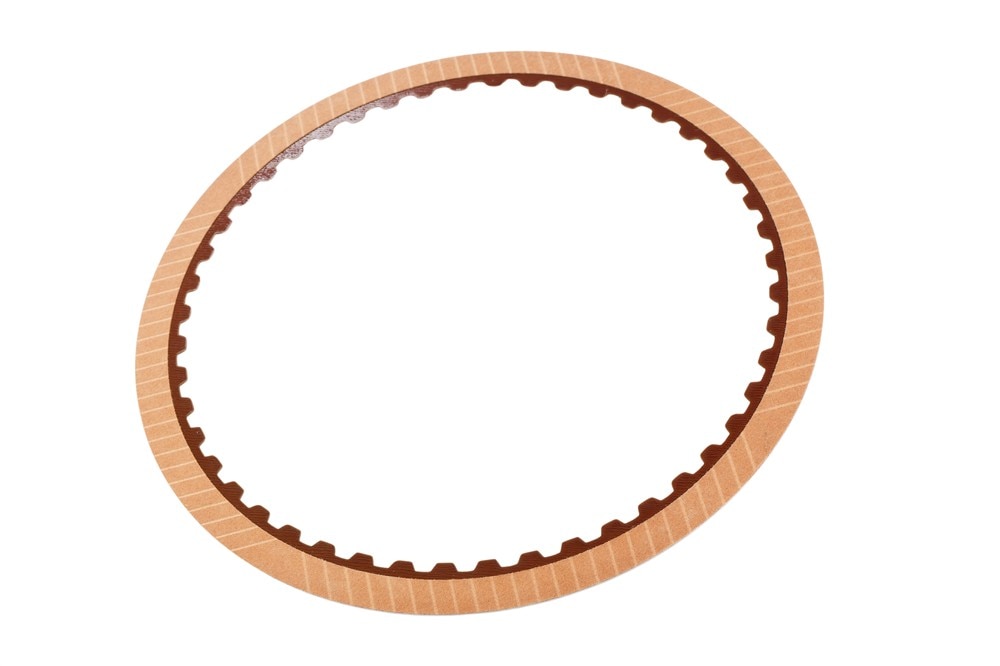

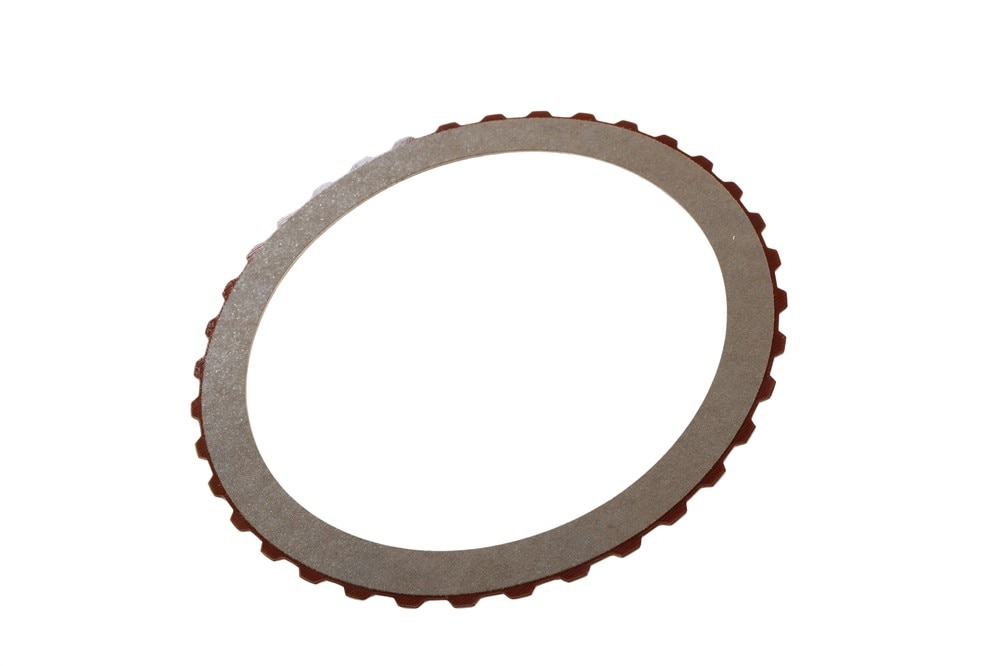

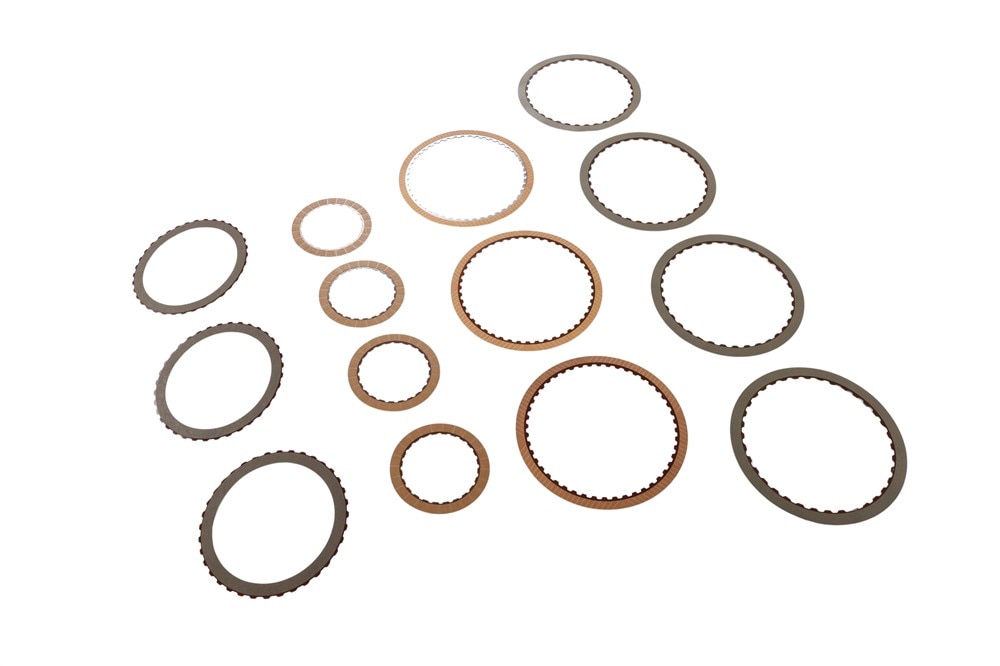

GM Genuine Parts Automatic Transmission Clutch Plate Kit with Friction Plates
GM Part #24249460
ACDelco Part #24249460
About this product
ACDelco GM Original Equipment Automatic Transmission Clutch Plate Kit contains GM-recommended replacement components for one or more of the following vehicle systems: automatic transmission/transaxle, and/or manual drivetrain and axles. This original equipment kit contains components that will provide the same performance, durability, and service life you expect from General Motors.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- GM-recommended replacement part for your GM vehicle's original factory component
- Offering the quality, reliability, and durability of GM OE
- Manufactured to GM OE specification for fit, form, and function
Product Specifications
Height4.25in
ClassificationOE
Clutch Plate 5 Inside Diameter7.142 in / 181.40 mm
Clutch Plate 2 Inside Diameter7.230 in / 183.63 mm
Clutch Plate 2 Outside Diameter8.543 in / 217.00 mm
Clutch Plate 4 Outside Diameter8.591 in / 218.20 mm
Clutch Plate 5 Outside Diameter8.591 in / 218.20 mm
Clutch Plate 1 Outside Diameter8.591 in / 218.20 mm
Clutch Plate 3 Inside Diameter5.709 in / 145.00 mm
Clutch Plate 3 Outside Diameter7.075 in / 179.70 mm
Clutch Plate 1 Inside Diameter7.142 in / 181.40 mm
Clutch Plate 4 Inside Diameter7.142 in / 181.40 mm
Clutch 1 Friction Material Thickness0.014 in / 0.35 mm
Clutch 5 Friction Material Thickness0.014 in / 0.35 mm
Clutch 4 Friction Material Thickness0.014 in / 0.35 mm
Clutch 2 Friction Material Thickness0.016 in / 0.41 mm
Clutch 3 Friction Material Thickness0.016 in / 0.41 mm
Length9.75in
Width9.25in
Friction MaterialDouble Sided Wet Clutch
Height4.25in
Clutch Plate 5 Inside Diameter7.142 in / 181.40 mm
Clutch Plate 2 Outside Diameter8.543 in / 217.00 mm
Clutch Plate 5 Outside Diameter8.591 in / 218.20 mm
Clutch Plate 3 Inside Diameter5.709 in / 145.00 mm
Clutch Plate 1 Inside Diameter7.142 in / 181.40 mm
Clutch 1 Friction Material Thickness0.014 in / 0.35 mm
Clutch 4 Friction Material Thickness0.014 in / 0.35 mm
Clutch 3 Friction Material Thickness0.016 in / 0.41 mm
Width9.25in
ClassificationOE
Clutch Plate 2 Inside Diameter7.230 in / 183.63 mm
Clutch Plate 4 Outside Diameter8.591 in / 218.20 mm
Clutch Plate 1 Outside Diameter8.591 in / 218.20 mm
Clutch Plate 3 Outside Diameter7.075 in / 179.70 mm
Clutch Plate 4 Inside Diameter7.142 in / 181.40 mm
Clutch 5 Friction Material Thickness0.014 in / 0.35 mm
Clutch 2 Friction Material Thickness0.016 in / 0.41 mm
Length9.75in
Friction MaterialDouble Sided Wet Clutch
24 Months/Unlimited Miles Limited Warranty for Parts (plus Labor if installed by a GM dealer)
Please visit our warranty page on Gmparts.com for full warranty details.
