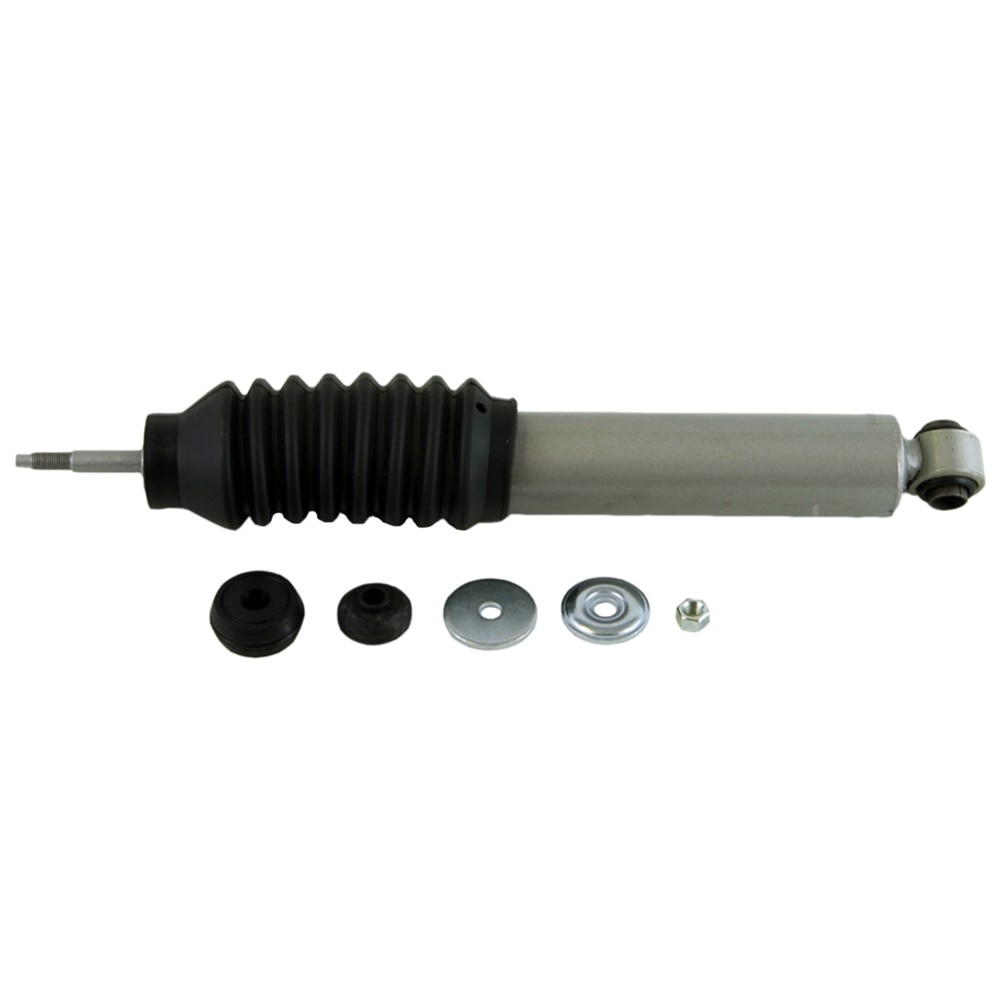

ACDelco Gold Premium Monotube Rear Shock Absorber

About this product

ACDelco Specialty Premium Monotube Shocks are designed to meet the demands of sport utility vehicles, 4x4s and light-duty trucks, which require greater control, handling, safety, and performance. These premium shocks feature consistent damping and rapid response characteristics, large chromed piston rods, high pressure nitrogen gas up to 275 psi, and a single tube design. Additionally, ACDelco Specialty Premium Monotube Shocks utilize floating piston technology that completely separates the oil from the nitrogen gas, producing extremely consistent operational control due to aeration elimination, and superior heat dissipation.

Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Single tube and multi-stage sealing design minimizes chamber temperature and debris entry for longer lasting performance
Larger 1-13/16 inch (46mm) bore size allows the shock to react quickly to bumps and other road imperfections
Greater heat dissipation, improved cooling, and reduction in fade, compared to conventional twin tube shocks
Large internal working area helps reduce stress and fatigue for component durability
Monotube technology and rod guide bearing system offer outstanding response for controlled handling
14mm super finished, hardened, chromed piston rod for anti-corrosion support and a consistent wear surface
Fit and ride tested to ensure that the shocks will fit intended vehicles and applications

Product Specifications

Mounting Hardware IncludedYes

Gas ChargedYes

Body Diameter1.97 in / 50.04 mm

Compressed Length14.72 in / 245.364 mm

Boot IncludedYes

ClassificationGold

Shock Stroke242.82mm

Travel Length9.56 in / 242.82 mm

Shock Absorber Body End Measuring PointCenter Eye

Shock Absorber Rod End Measuring PointCenter Barpin

Mounting Hardware IncludedYes

Body Diameter1.97 in / 50.04 mm

Boot IncludedYes

Shock Stroke242.82mm

Shock Absorber Body End Measuring PointCenter Eye

Gas ChargedYes

Compressed Length14.72 in / 245.364 mm

ClassificationGold

Travel Length9.56 in / 242.82 mm

Shock Absorber Rod End Measuring PointCenter Barpin

12 Months/Unlimited Miles Limited Warranty for Parts (plus Labor if installed by a GM dealer)

Please visit our warranty page on Gmparts.com for full warranty details.

To inspect your shocks and struts to gauge wear, check for:

Brakes
Tie rods
Ball joints
Tires
Leaking oil or wetness along the body of the shock or strut.
Broken mounts, worn or missing bushings.
Broken, damaged, or missing mounting hardware.
Severely dented reservoir tube, bent or scratched piston rod.
Cupped tire wear.
Damaged strut body springs, seats, and bushings.
Defective strut bearing or missing plate.

Uneven patches of wear on the edges of your tire can be a sign of weak ride control (shocks or struts). This wear, called cupping, appears as scalloped dips around the surface of the tread. Other signs it could be time to replace your shocks or struts include:

There is excessive nose dive while braking
Your vehicle has 'acceleration squat'
Your vehicle does not return to a neutral position
Your steering pulls
There is a strut mount or bearing noise
Your ride is harsh, bumpy or shaky
Your vehicle bounces excessively
Your vehicle veers in side winds
Your vehicle leans or sways while turning
Your vehicle bounces excessively after hitting a bump
Your vehicle bottoms out
If your vehicle's height seems lower than normal when measured
If you notice fluid leakage from your vehicle's shocks or struts
If your vehicle's shocks or struts have dented or heavily scratched housings or mounts

Model	Body Style	Trim	Year(s)
Corvette			1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996

About this product

Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Single tube and multi-stage sealing design minimizes chamber temperature and debris entry for longer lasting performance
Larger 1-13/16 inch (46mm) bore size allows the shock to react quickly to bumps and other road imperfections
Greater heat dissipation, improved cooling, and reduction in fade, compared to conventional twin tube shocks
Large internal working area helps reduce stress and fatigue for component durability
Monotube technology and rod guide bearing system offer outstanding response for controlled handling
14mm super finished, hardened, chromed piston rod for anti-corrosion support and a consistent wear surface
Fit and ride tested to ensure that the shocks will fit intended vehicles and applications

Product Specifications

Mounting Hardware IncludedYes

Gas ChargedYes

Body Diameter1.97 in / 50.04 mm

Compressed Length14.72 in / 245.364 mm

Boot IncludedYes

ClassificationGold

Shock Stroke242.82mm

Travel Length9.56 in / 242.82 mm

Shock Absorber Body End Measuring PointCenter Eye

Shock Absorber Rod End Measuring PointCenter Barpin

Mounting Hardware IncludedYes

Body Diameter1.97 in / 50.04 mm

Boot IncludedYes

Shock Stroke242.82mm

Shock Absorber Body End Measuring PointCenter Eye

Gas ChargedYes

Compressed Length14.72 in / 245.364 mm

ClassificationGold

Travel Length9.56 in / 242.82 mm

Shock Absorber Rod End Measuring PointCenter Barpin

12 Months/Unlimited Miles Limited Warranty for Parts (plus Labor if installed by a GM dealer)

Please visit our warranty page on Gmparts.com for full warranty details.

To inspect your shocks and struts to gauge wear, check for:

Brakes
Tie rods
Ball joints
Tires
Leaking oil or wetness along the body of the shock or strut.
Broken mounts, worn or missing bushings.
Broken, damaged, or missing mounting hardware.
Severely dented reservoir tube, bent or scratched piston rod.
Cupped tire wear.
Damaged strut body springs, seats, and bushings.
Defective strut bearing or missing plate.

Uneven patches of wear on the edges of your tire can be a sign of weak ride control (shocks or struts). This wear, called cupping, appears as scalloped dips around the surface of the tread. Other signs it could be time to replace your shocks or struts include:

There is excessive nose dive while braking
Your vehicle has 'acceleration squat'
Your vehicle does not return to a neutral position
Your steering pulls
There is a strut mount or bearing noise
Your ride is harsh, bumpy or shaky
Your vehicle bounces excessively
Your vehicle veers in side winds
Your vehicle leans or sways while turning
Your vehicle bounces excessively after hitting a bump
Your vehicle bottoms out
If your vehicle's height seems lower than normal when measured
If you notice fluid leakage from your vehicle's shocks or struts
If your vehicle's shocks or struts have dented or heavily scratched housings or mounts

Model	Body Style	Trim	Year(s)
Corvette			1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996

Frequently Asked Questions

Yes, though shocks and struts perform a similar function, they vary greatly in their design. Struts are an integral part of a vehicle's suspension system, providing structural support for the vehicle and, as such, are a safety subsystem. Shocks work separately from any structural function, simply absorbing and damping the bumps from the road.

Yes, all shocks and struts use hydraulic fluid (oil) to control damping. A gas charged shock or strut uses high-pressure nitrogen gas to reduce oil foaming during high-speed damping, and therefore maintains performance.

Yes, it is possible to do a quick check at home for wear on your vehicle's shocks or struts. You can look for any physical damage to the shock or strut housing or any leaking - this is especially common on rear units that tend to have stones kicked up by the front wheels. You can also perform a bounce test by taking each corner of the vehicle and pushing down hard. The corner should drop, rise and settle again. If the body continues to move up and down, there's a good chance your shocks need to be replaced. Though these home tests can indicate worn shocks or struts, it is also recommended that you take your vehicle to a qualified service technician and let them do a thorough inspection every 12 months or 12,000 miles.

Yes, if you are replacing your vehicle's struts. However, it is not necessary to get your vehicle aligned when replacing your vehicle's shocks unless there was or is a previous issue.

Yes, it is important to choose the correct shock or strut for your vehicle model and year, as well as for the location in the vehicle.

About this product

Product details

Specifications

Product Specifications

Warranty

Maintenance

To inspect your shocks and struts to gauge wear, check for:

Uneven patches of wear on the edges of your tire can be a sign of weak ride control (shocks or struts). This wear, called cupping, appears as scalloped dips around the surface of the tread. Other signs it could be time to replace your shocks or struts include:

Fits these vehicles

About this product

Product details

Specifications

Product Specifications

Warranty

Maintenance

To inspect your shocks and struts to gauge wear, check for:

Uneven patches of wear on the edges of your tire can be a sign of weak ride control (shocks or struts). This wear, called cupping, appears as scalloped dips around the surface of the tread. Other signs it could be time to replace your shocks or struts include:

Fits these vehicles

Frequently Asked Questions

Is there a difference between a shock and a strut?

Do gas charged shocks or struts contain oil?

Can I check my vehicle's shocks for wear?

Should I have my vehicle aligned after replacing my shocks or struts?

Do I need different shocks for front, rear, left, or right applications?
